Boots for industrial applications
Precision meets protection – bellows for demanding industrial processes
What are the key features that ensure the reliability of a bellow in industrial applications?
Our bellows for industrial applications provide dependable protection for moving components and are specifically designed for demanding operating environments. Whether in mechanical engineering, automation technology or custom machinery – we develop tailor made solutions that perfectly combine functionality, safety and design.
Optimized geometries, wall thicknesses and material selections ensure the long-term reliable absorption of high loads, vibrations and frequent movement cycles.
Bellows in detail – designs and application areas
Product | Boots

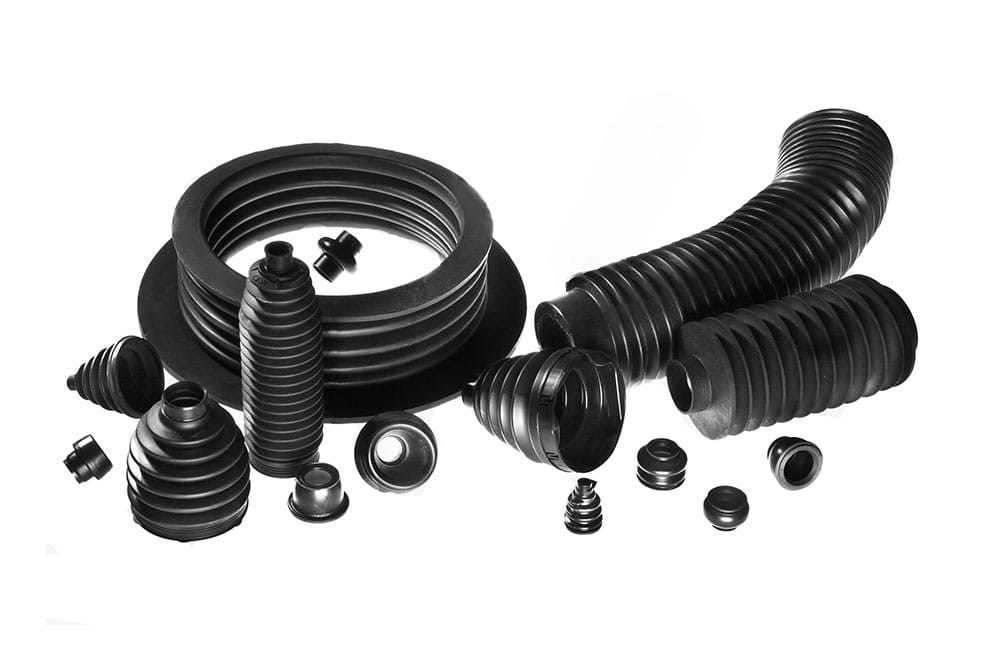

Catalog / Standard bellows
Our extensive range of single and multi convolution bellows is available in many variants directly from stock and is ideal for immediate use. This helps reduce downtime and spare parts can be supplied quickly and reliably.
Our catalog portfolio includes the following categories:
- CASC – Catalog Article Single-Convolution
- CAMC – Catalog Article Multi-Convolution
- CAMB – Catalog Article Modular Boot
- CACB – Catalog Article Cable Bushing
The clear categorization simplifies pre selection and spare parts procurement.
Catalog / Standard bellows
Product | Boots

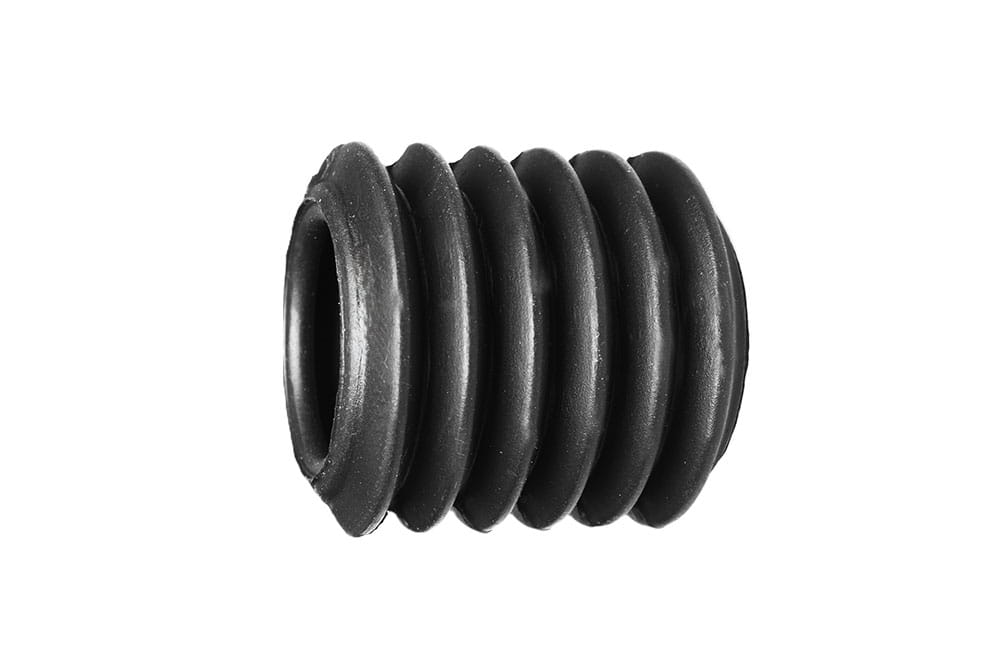

Multi convolution bellows for industrial applications
Multi convolution bellows reliably protect axially moving rods and machine components from contamination, splash water, dust and environmental influences. Depending on their design, they can also accommodate movements transverse to the axis or combined movement patterns, such as those found in gear shift levers.
Their flexible geometry makes them an ideal solution for demanding industrial applications with complex movement profiles.
Typical areas of application:
- Mechanical engineering
- Agricultural and construction machinery
- Shafts and ball joints
- Axle bearings
- Gear shift levers
- Piston rods
- inertia brake
- Telescopic forks
Product | Boots

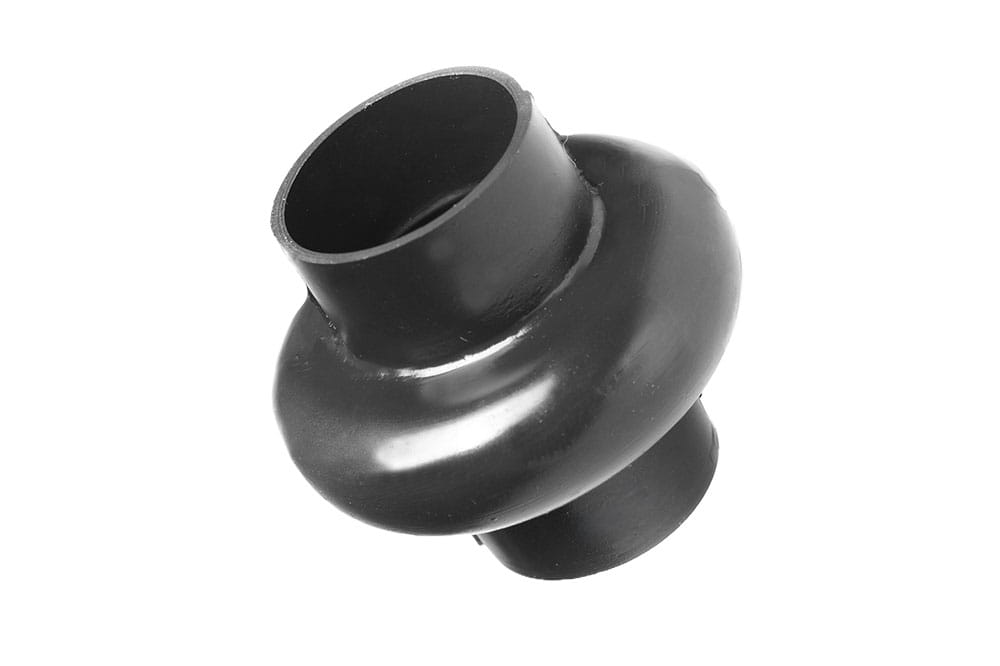

Single convolution bellows for industrial applications
Single convolution bellows serve as protective elements for shaft joints that primarily perform angular movements. Due to their design, axial mobility is limited.
They are particularly suitable for applications with short stroke movements and small angular displacements, making them ideal for compact installation spaces with defined movement radii. Typical areas of use include ball joints and pipe connections where reliable protection and flexible motion compensation are required.
Contact about Single Convolution Bellows
Product | Boots

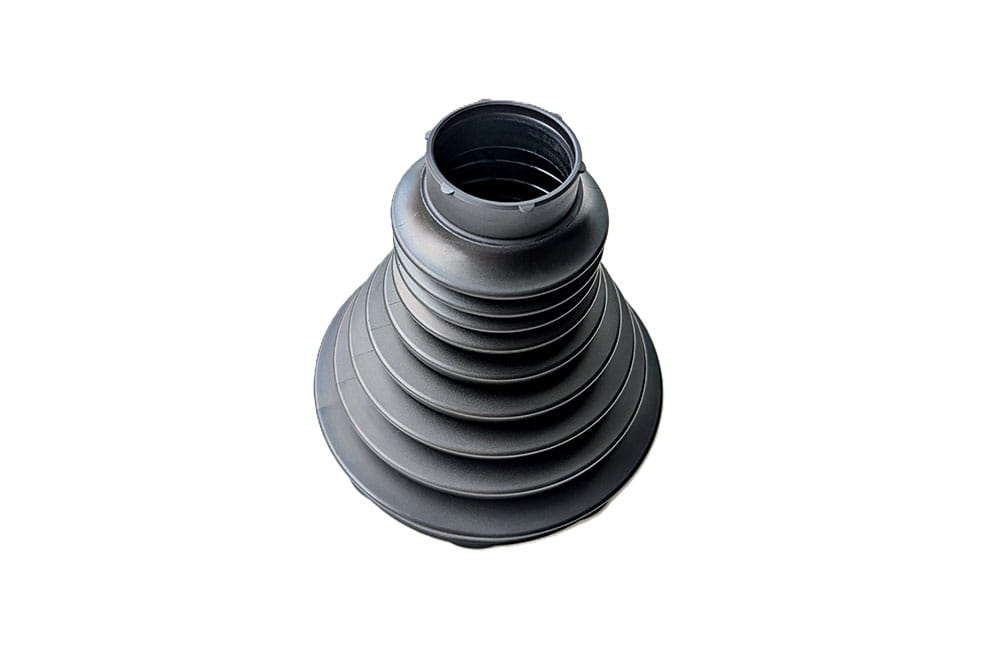

Modular TPE boots
Modular TPE boots offer a wide range of configuration options thanks to a flexible modular system. Production lengths (85–200 mm), connection diameters (Ø50–Ø125 mm) and connection interfaces can be individually customized.
This flexibility allows for easy adaptation to varying installation environments — ideal for mechanical engineering, vehicle technology and special purpose machinery.
Contact about Modular TPE bootsBellows for industrial applications – solutions for every sector
Bellows are used across a wide range of industries and applications. Some typical examples include:
Bellows for agricultural and construction machinery – protection under the toughest conditions
Bellows reliably protect moving components such as hydraulic rods, joints and bearings in agricultural and construction machinery from dirt, moisture, dust and intense vibration. They extend the service life of the components, reduce maintenance requirements and ensure proper functionality even under extreme operating conditions such as mud, rain or continuous shock loads.
Thanks to robust materials and application specific geometries, they are ideal for tractors, excavators, forage harvesters, harvesting and fertilizing equipment, as well as other mobile work machines.
Bellows for food & beverage – hygienic, safe and functional
In the food and beverage industry, bellows reliably protect moving components from contamination, moisture and aggressive cleaning agents. High quality, FDA compliant materials such as VMQ or EPDM meet strict hygiene requirements and offer excellent resistance to media and temperature.
The precise shaping based on hygienic design principles enables easy cleaning and secure integration into sterile production environments — ideal for filling systems, homogenizers and process related machinery.
Bellows for the pharmaceutical industry and medical technology
In medical technology and pharmaceutical production, bellows ensure reliable sealing of sensitive devices and help prevent cross‑contamination. FDA‑compliant materials such as VMQ or EPDM provide high levels of hygiene, chemical resistance and temperature stability.
Thanks to their precise geometry, the bellows are easy to clean and can be seamlessly integrated into sterile environment systems — ideal for tablet presses, laboratory equipment and analysis or testing stations.
Bellows in power tools – protection for moving components under high load
In professional power tools such as rotary hammers, tampers, nail guns or leaf blowers, bellows reliably protect mechanical components from dust, dirt, moisture and intense vibration.
They are used on moving connection elements, guides and joints, helping to maintain the service life and functional reliability of the tools even under demanding operating conditions.
Robust materials and compact geometries make them ideal for high performance construction and garden equipment.
Bellows for power transmission systems
In electrical switchgear, bellows reliably protect moving connectors, actuating mechanisms and interfaces from dust, moisture and foreign objects. They ensure the functionality of mechanical components and contribute to electrical safety.
Especially in outdoor installations or industrial environments, their robust and media‑resistant designs extend the service life of the systems and reduce maintenance requirements.

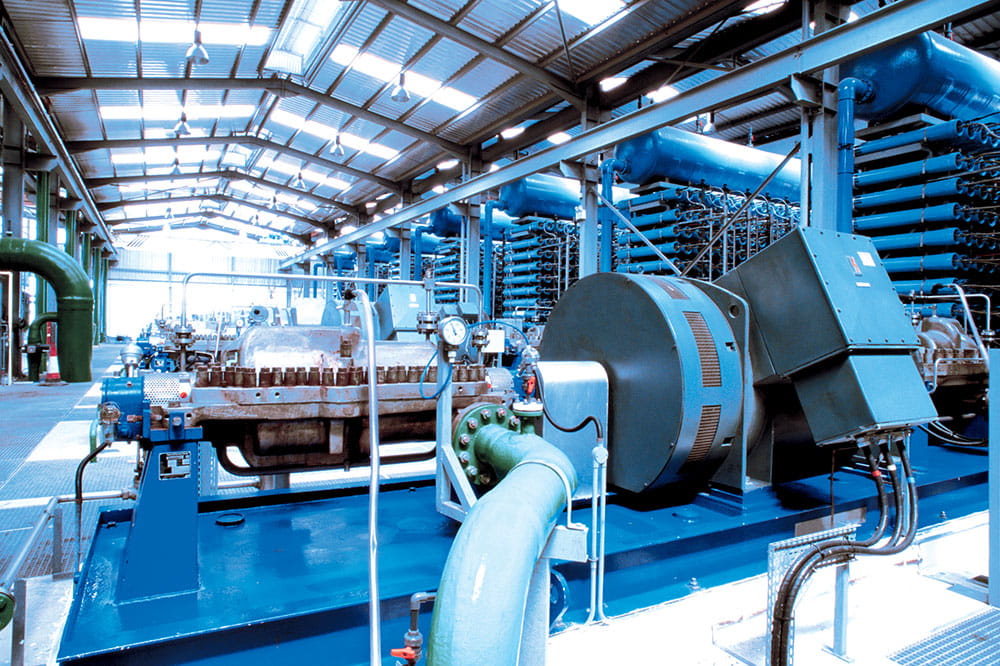

Bellows in fluid technology – flexible protective solutions for hydraulic and pneumatic systems
In hydraulic and pneumatic systems, bellows reliably protect lines, valves and connecting elements from dirt, moisture and chemical influences.
They compensate for movements and vibrations and enable the safe guidance of media in fluid technology applications.
High material resistance, dimensional stability and adaptability make them ideal for applications with demanding requirements for sealing performance and service life.

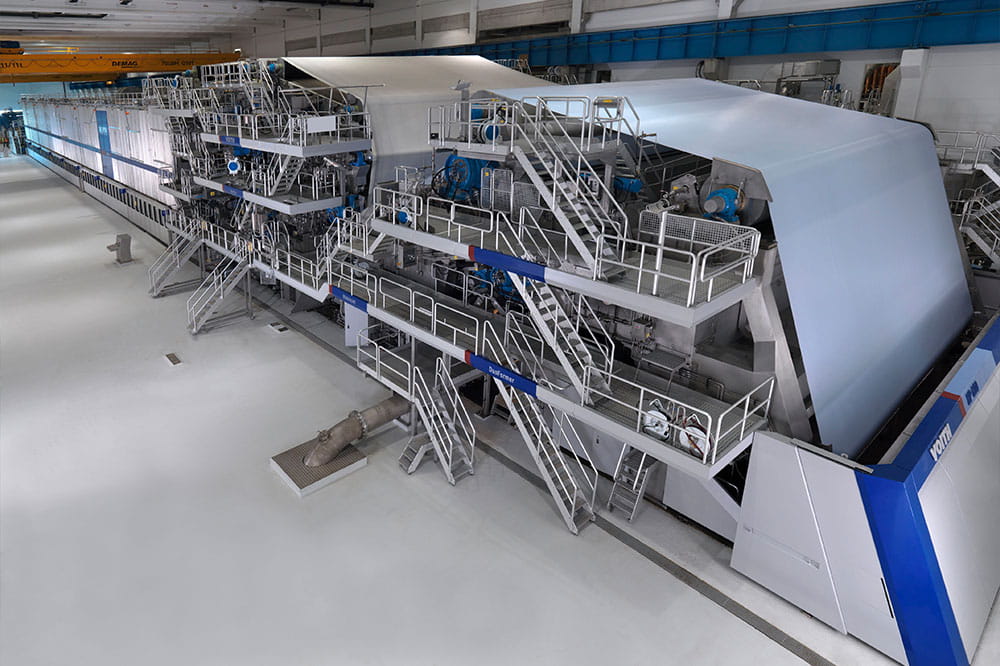

Bellows in paper and wood processing
In paper and wood processing, bellows protect sensitive machine components from dust, wood chips, moisture and other process related influences.
They are used on guides, spindles and linear axes and make a significant contribution to extending service life and reducing maintenance intervals.
Thanks to flexible geometry and material adaptability, they can be seamlessly integrated into existing systems — even at high cycle rates and with dynamic movement sequences.
Bellows for the railway sector – functionality meets reliability
Bellows are key components in modern rail vehicles, enabling safe connections between carriages. They compensate for dynamic movements between cars and protect against moisture, dirt and noise.
Our solutions are tailored to the specific requirements of the railway sector — from high speed trains to local transit systems — and contribute to safety, comfort, aerodynamics and energy efficiency.
Bellow solutions for robotics and automation
In robotics and automation technology, bellows are specifically used in end of arm systems — for example in bellow suction cups and flexible grippers for sensitive or structured surfaces.
In weight compensation systems, they provide reliable sealing and precise movement compensation, such as in vertically guided axes or compensation units with high dynamic demands.
Bellows for outdoor and leisure applications – robust protection for mobile use
In recreational vehicles such as sports boats, ATVs, e bikes or golf carts, bellows protect mechanical components from dirt, water, dust and environmental influences.
They are used particularly in steering and drivetrain systems, suspensions and electrical interfaces, ensuring reliable functionality even under changing outdoor conditions.
Thanks to flexible geometries and robust materials, they offer long service life and reduce maintenance requirements — whether on the road, off road or on the water.
Custom manufacturing according to customer specifications
How to design a customized bellow
We manufacture your bellow exactly according to your drawing or take over the complete development — including design, material selection and validation. Even complex geometries such as oval or prismatic cross sections, as well as special requirements for color, media resistance or material compliance, are implemented with precision.
Especially in tight installation spaces or under extreme environmental conditions, a customized solution offers significant advantages over standard components.
