Wipers
High-performance wipers for clean and long-lasting hydraulic sealing systems
Maximum protection for downstream sealing and guiding elements
Wipers are a critical component of modern hydraulic sealing systems. They reliably protect downstream sealing and guiding elements from external influences, thereby establishing the foundation for safe and long-term system performance.
Even small amounts of dirt, abrasive particles, or moisture can impair the performance of primary and secondary seals as well as guiding components, leading to increased wear or premature failure. Effective contaminant removal—especially under changing environmental conditions and extended maintenance intervals—plays a decisive role in maintaining the cleanliness of the operating medium and ensuring system reliability.
Wipers from Freudenberg Sealing Technologies are precisely engineered to a wide range of operating conditions and are developed as an integral part of comprehensive sealing solutions. The precise alignment of material, geometry, and installation conditions enables high wiping performance while minimizing wear. In this way, wipers make a significant contribution to the durability, reliability, and efficiency of modern sealing systems.
Wipers – Our Key Designs
Organized by materials – for maximum performance, efficiency, and service life
PU – Polyurethane
For more than 60 years, polyurethane has proven to be an ideal material for seals—especially in hydraulic applications. Its outstanding properties include high mechanical strength, excellent elasticity, and exceptional tear and abrasion resistance. This profile is complemented by good media resistance and long service life.
Tailor-made polyurethane sealing solutions are available for a wide range of applications, covering a broad temperature range from -50 °C to +120 °C. In addition, they meet special requirements such as hydrolysis resistance or industry-specific certifications.
Wipers – Our Key Polyurethane Designs

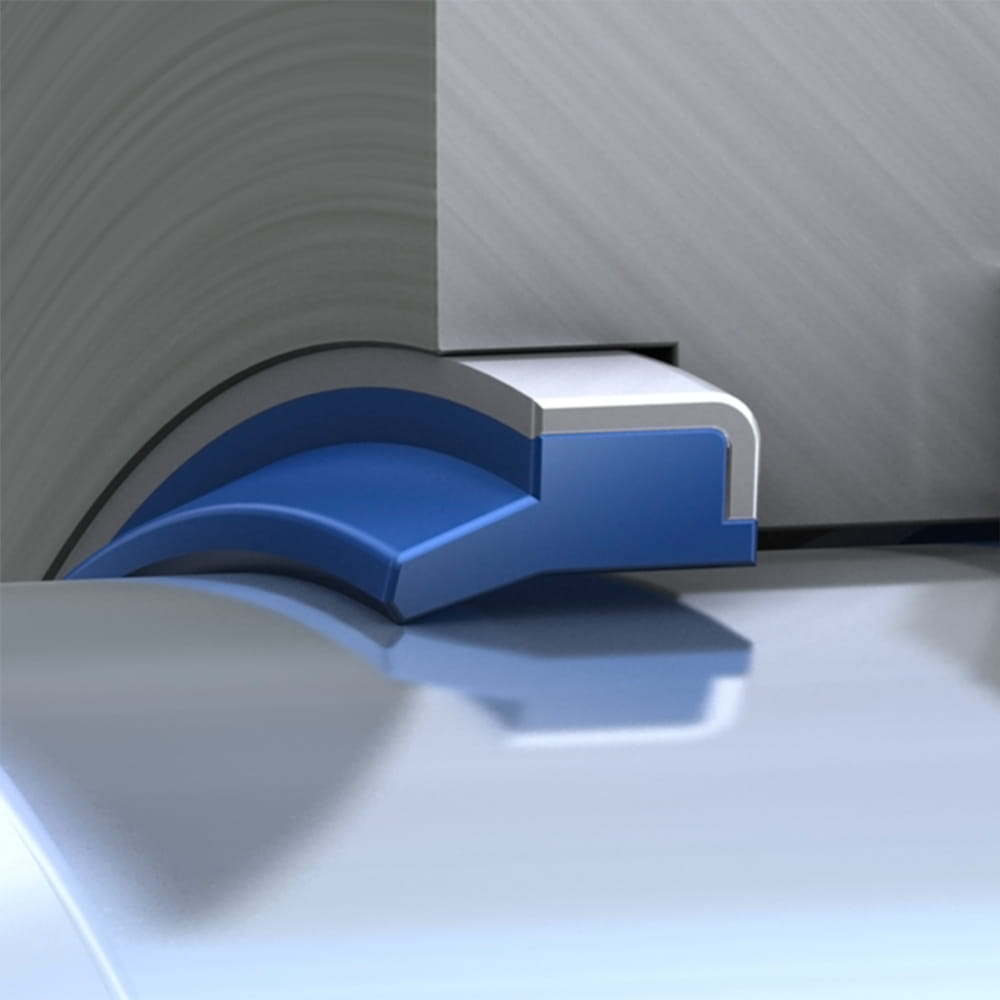

AUAS R
The AUAS R wiper is a single-acting dirt wiper with a metal case and a protruding wiping lip. The slightly rounded sealing edge reliably removes dirt particles while maintaining a protective residual oil film on the retracting rod.
-
Secure press-fit installation in the housing
-
No externally open annular gap between rod and housing
-
Prevents pressure build-up between wiper and upstream seal
-
Suitable for axially open housings according to ISO 6195 Type B
Download Product Data Sheet

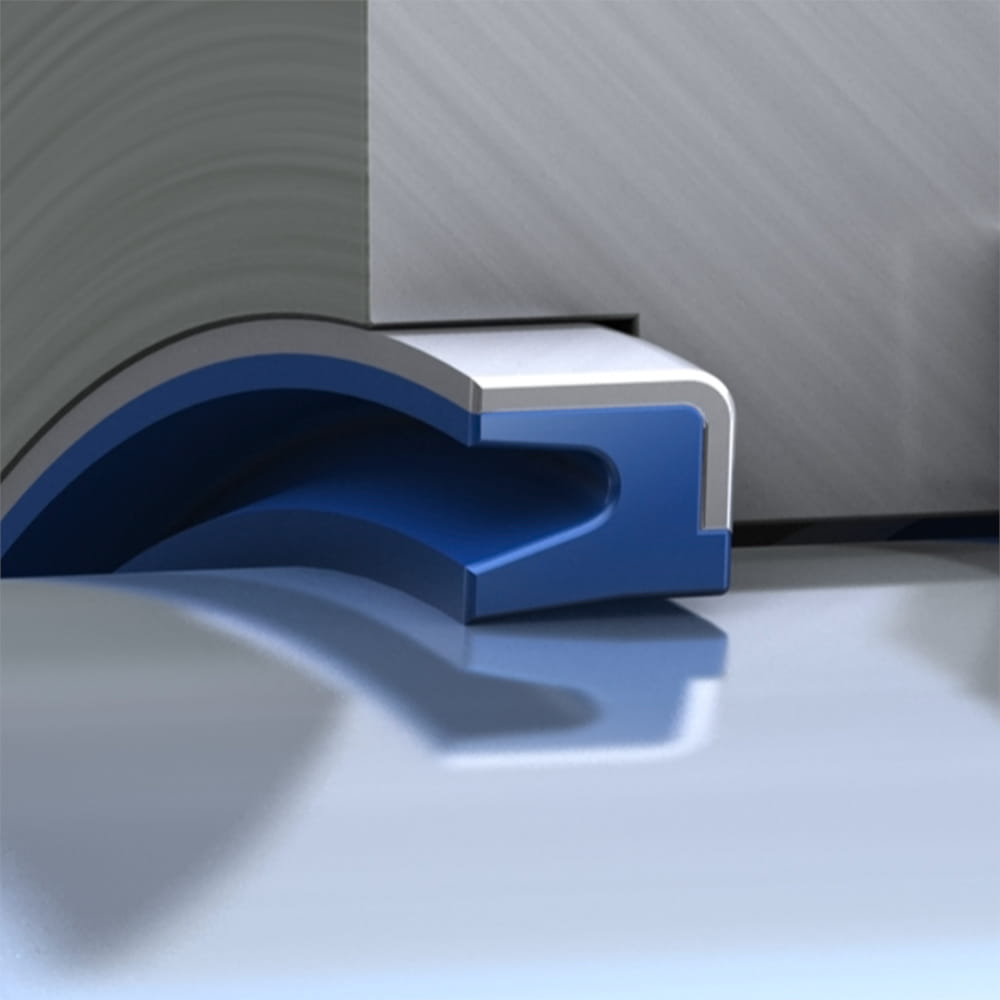

AU PS
The AU PS wiper is a single-acting dirt wiper with a metal case and a flush-configured wiping lip. It is particularly well suited for applications with limited installation space as well as for pivoting bearings.
-
Press fit prevents rotation during pivoting movements
-
Wiping lip opens under slight overpressure, enabling relubrication
-
Minimal axial installation length due to flush-mounted lip
-
Suitable for standardized housings according to ISO 6195 Type B
Download Product Data Sheet

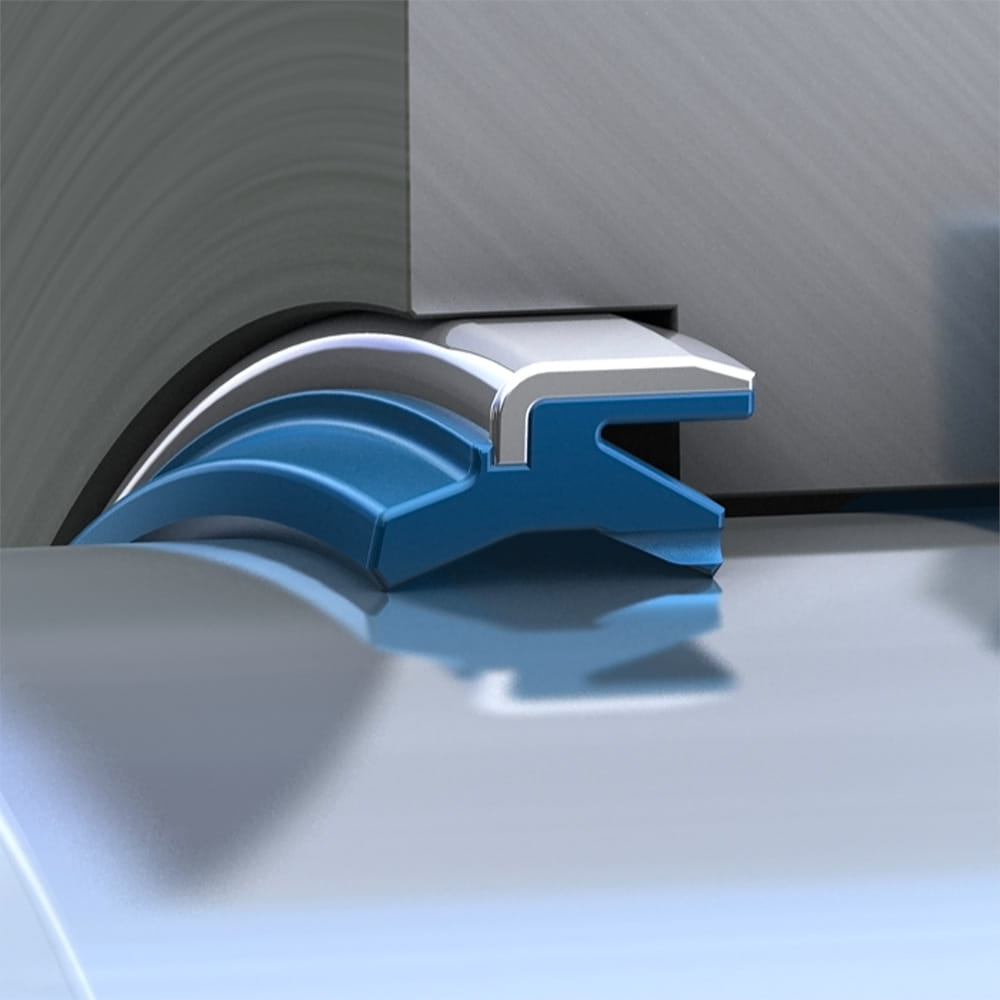

DMRW2
The DMRW2 double wiper combines a dimensionally stable wiping lip with an additional sealing lip and integrated pressure relief function. A metal case ensures a secure fit and high operational reliability.
-
Excellent wiping performance due to stable lip geometry
-
Integrated pressure relief prevents pressure buildup between wiper and upstream seal – no additional housing bore required
-
Secure press fit in axially open housings
-
Designed for standard housings according to ISO 6195 Type B
Download Product Data Sheet

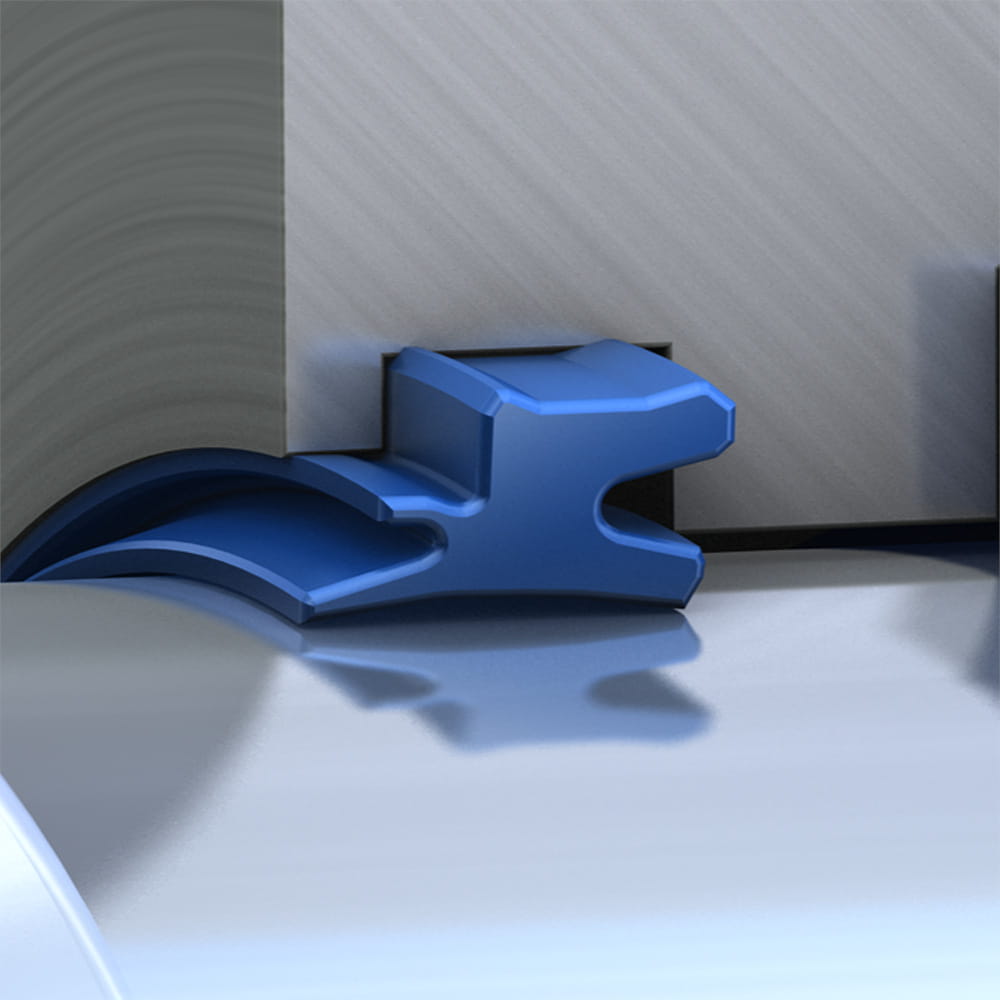

PRW1
The PRW 1 double wiper features an integrated pressure relief function as well as an optimized sealing and wiping edge geometry. This improves sealing performance and provides reliable protection against contamination.
-
No pressure buildup between wiper and rod seal due to integrated pressure relief
-
Dynamic sealing lip with machined sealing edge
-
Additional static sealing lip as a protective barrier
-
Suitable for housings based on ISO 6195 Type A
Download Product Data Sheet

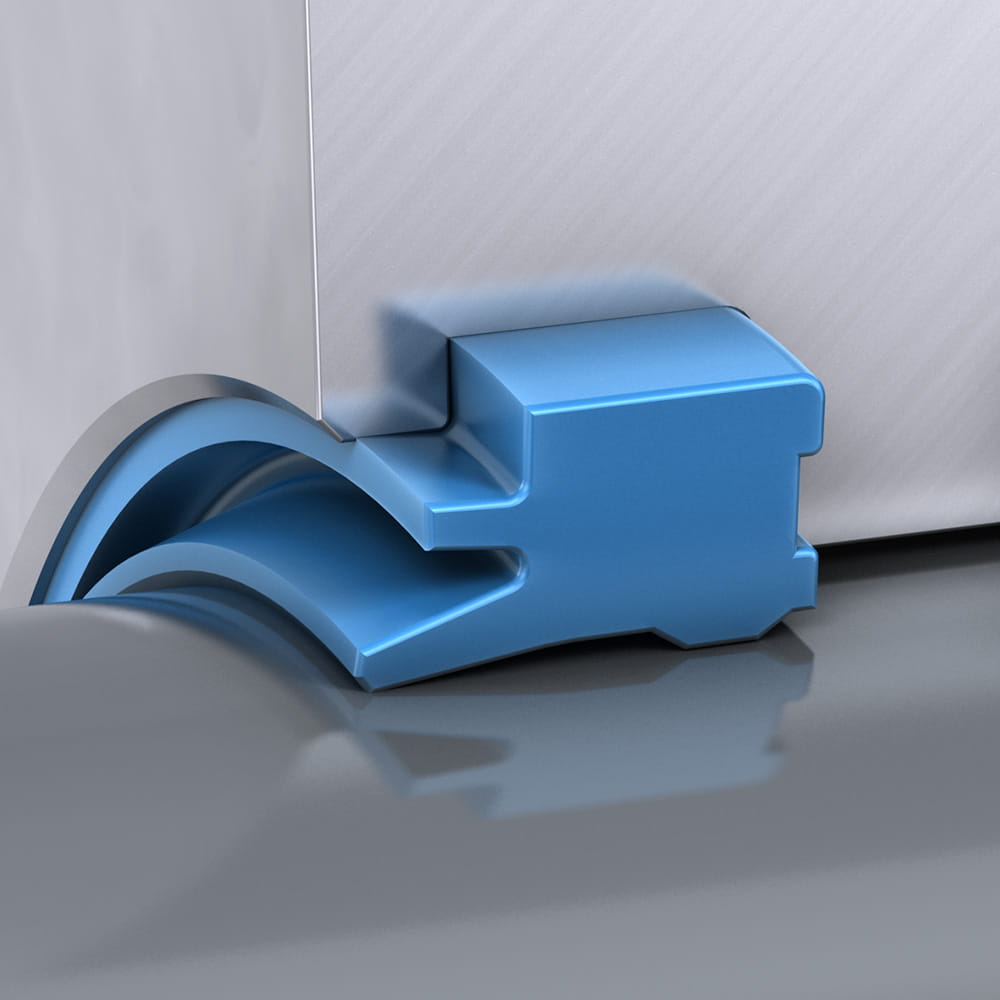

PU5
The PU5 wiper is a single-acting wiper with an additional static sealing lip. It provides reliable protection against dirt and splash water and supports the service life of the sealing system.
-
Rounded wiping edge for effective whipping, while allowing the protective residual oil film to return back into the cylinder
-
Support segments prevent the wiper from tilting downwards and allows pressure relief
-
Suitable for standardized housings according to ISO 6195 Type A
Download Product Data Sheet

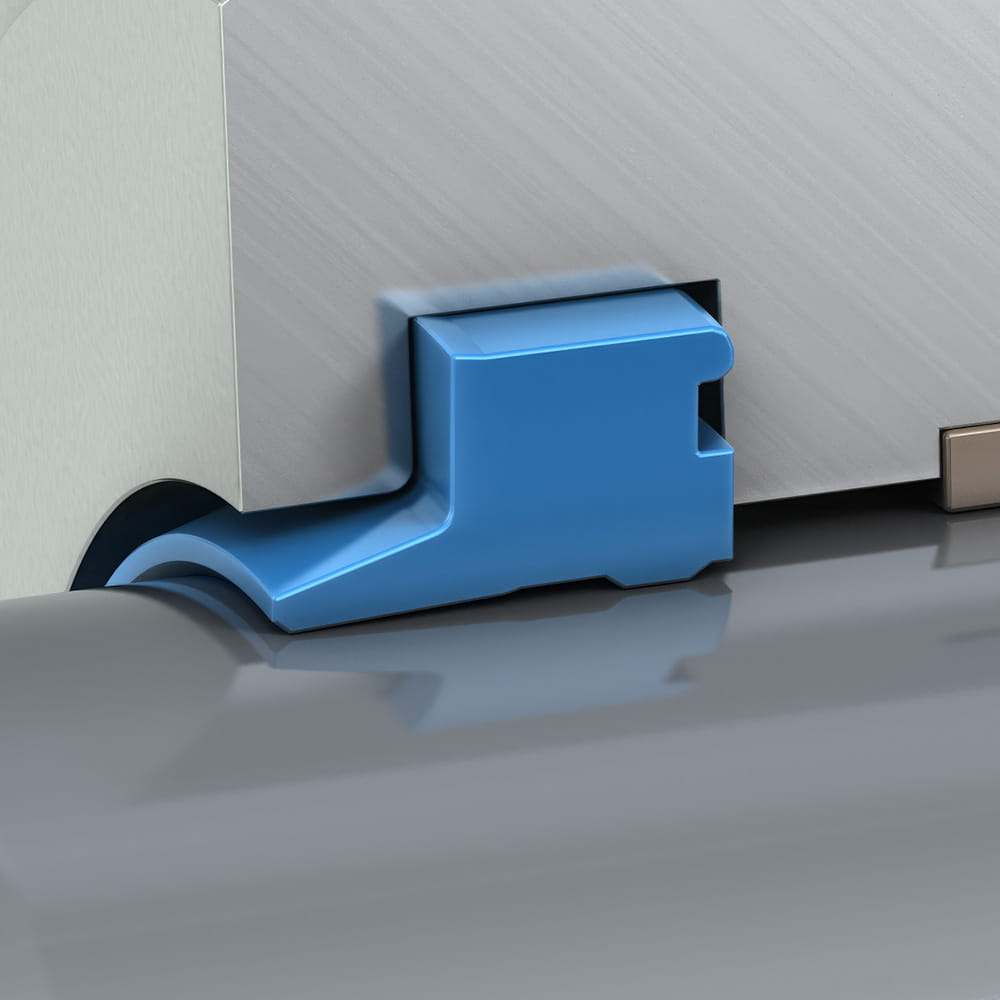

Merkel® PU6
The PU6 is a single-acting wiper with support segments to prevent twisting within the housing. An additional static sealing edge on the outer diameter enhances its functionality.
-
Proven, highly wear-resistant wiper solution
-
Reliable protection of downstream sealing elements via the static sealing edge against external dirt and water
-
Ideal partner within the sealing system—maintains a residual oil film on the retracting rod due to good back-pumping capability.
Download Product Data Sheet

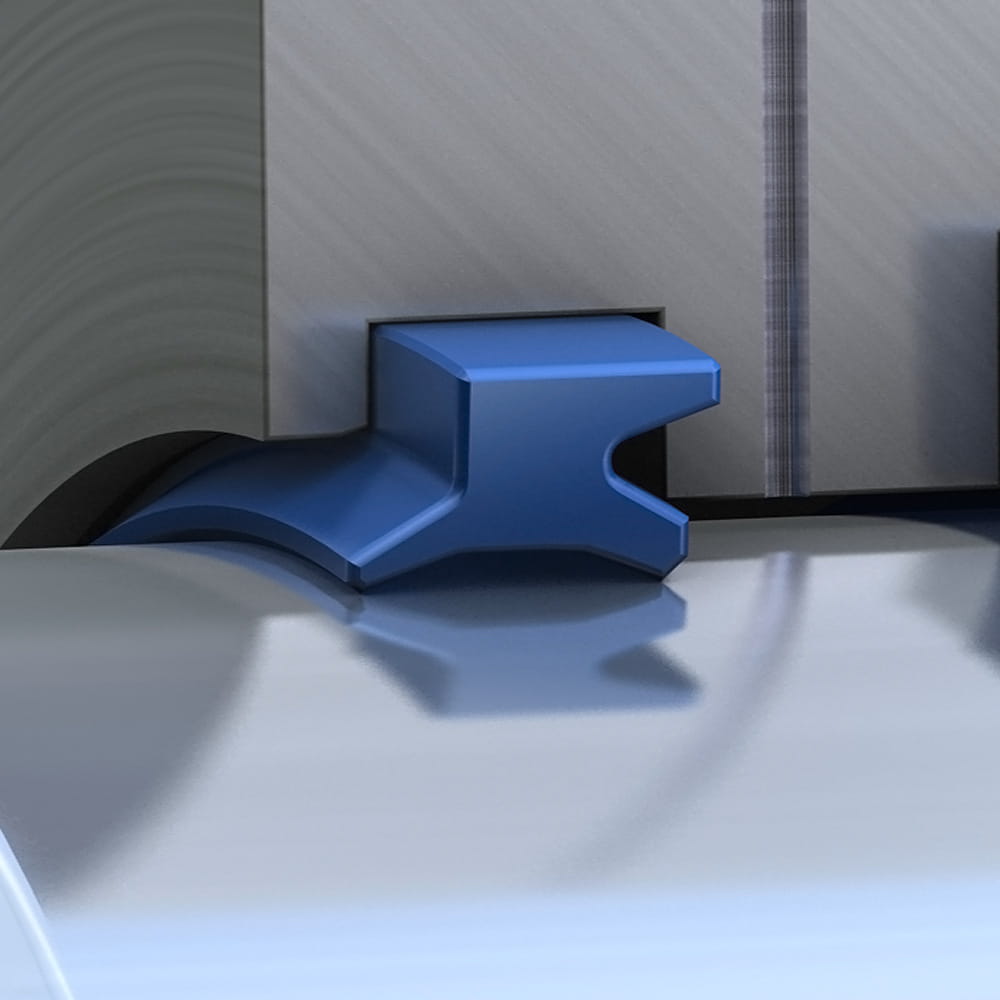

PU11
The PU 11 double wiper combines two sealing lips with a wiping lip. The coordinated lip geometry ensures reliable wiping and high sealing effectiveness.
-
Slightly rounded wiping edge for effective contaminant removal
-
Inward-facing sealing lip provide a Ucup seal function
-
Improves sealing performance, friction behavior, and overall system life
-
Also suitable for standardized housings according to ISO 6195 Type C
Download Product Data Sheet

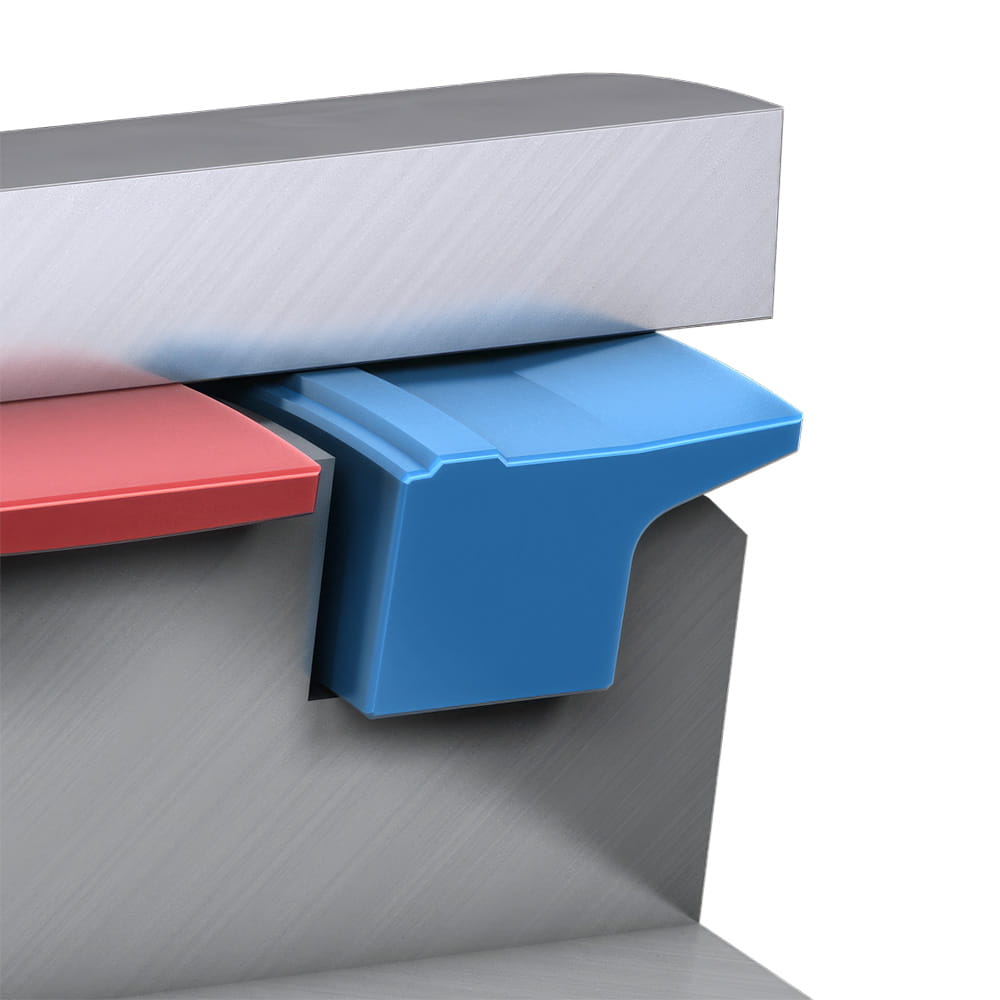

Merkel® PU12
The PU12 single-acting wiper is used in piston sealing systems. In addition to support segments preventing twisting in the housing, a sealing edge toward the groove base enhances static sealing performance.
-
Very good wiping performance due to dimensionally stable and wear-resistant lip
-
Protects the upstream piston seal from abrasion and contamination, thereby increasing system service life under demanding operating conditions
-
High operational reliability due to stable positioning in the housing.
Download Product Data Sheet
PTFE – Polytetrafluoroethylene
PTFE compounds can be used across a wide temperature range from −200°C to approx. 260°C. When used as a sealing element, the required elastomer preloading component limits the operating range to −30°C to 200°C.
PTFE compounds are hard, barely elastic, and offer very high extrusion resistance. Minimal deformation under compressive or tensile load is almost completely reversible. Their excellent sliding properties – even under poor lubrication – and high chemical resistance make PTFE the ideal material for a wide variety of sealing applications.
Wipers – Our Key PTFE Designs

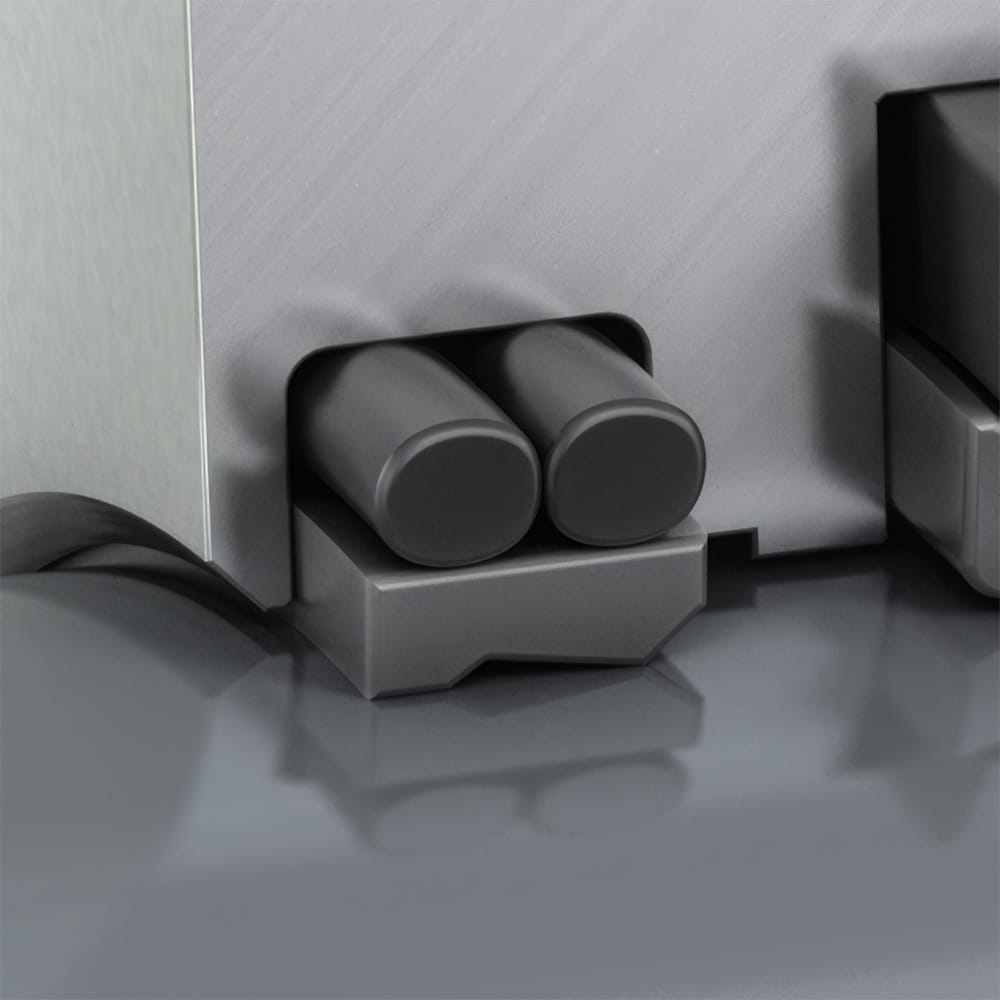

Merkel® PT1
The PT1 is a double-acting wiper. Its wiping edge faces outward, while an additional inward-facing sealing edge supports the function of the upstream sealing system. Two O-rings provide the necessary preload force for the PTFE profile ring.
-
Additional sealing edge ensures maximum functional reliability, including temporarily handling full operating pressure
-
Excellent wiping performance against adhering contamination on the piston rod due to a dimensionally stable wiping edge
-
Stick-slip-free performance of the double wiper supports precise control and positioning of the hydraulic cylinder in the application
Download Product Data Sheet

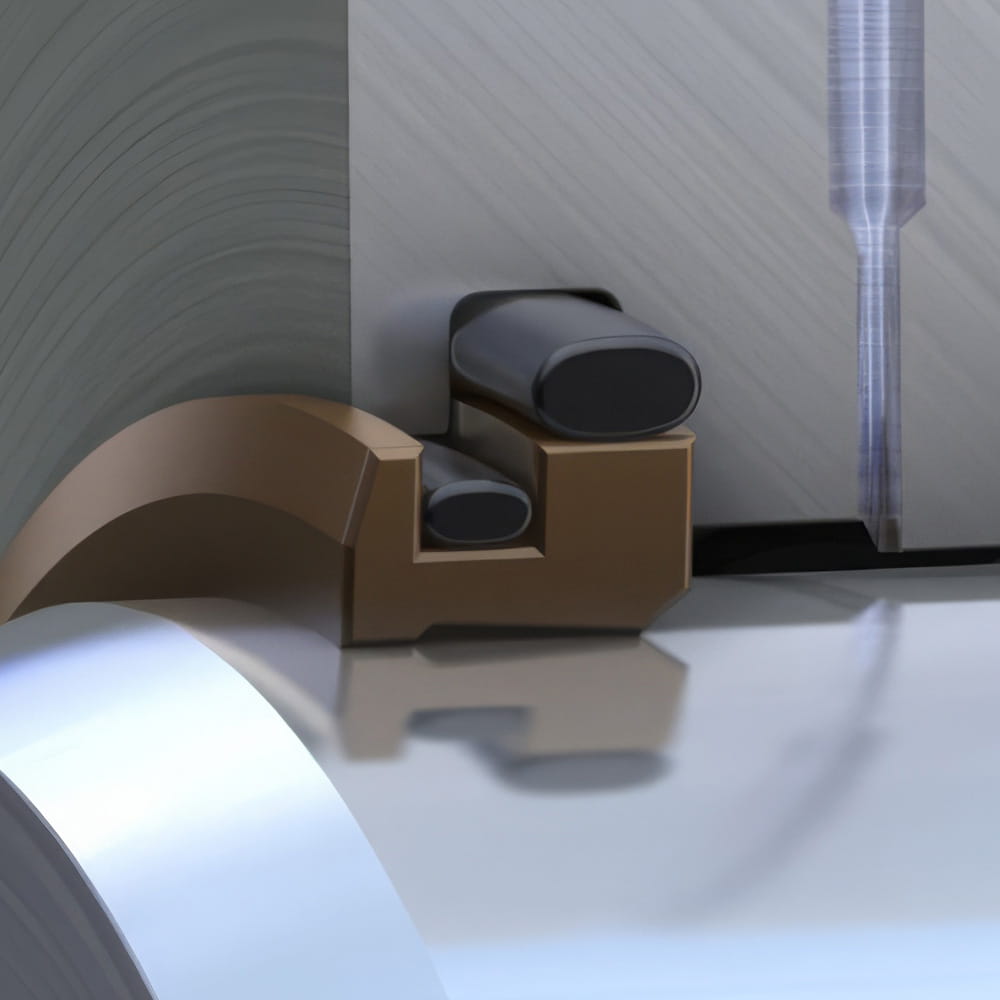

Merkel® PT2
The PT2 is a double-acting wiper. Its wiping edge faces outward, and an additional inward-facing sealing edge supports the upstream sealing system. Two O-rings provide the necessary preload force for the PTFE profile ring. The outer O-ring is positioned deep within a groove in the wiper. This groove encloses a shoulder in the housing, ensuring maximum protection against external contamination, for example in applications with upward-extending piston rods.
-
Additional sealing edge ensures maximum functional reliability
-
Optimal protection of downstream sealing components, including on the static side
-
Excellent wiping performance against adhering contamination on the piston rod due to a dimensionally stable wiping edge
-
Stick-slip-free performance supports the controllability and positioning accuracy of the hydraulic cylinder
Download Product Data Sheet

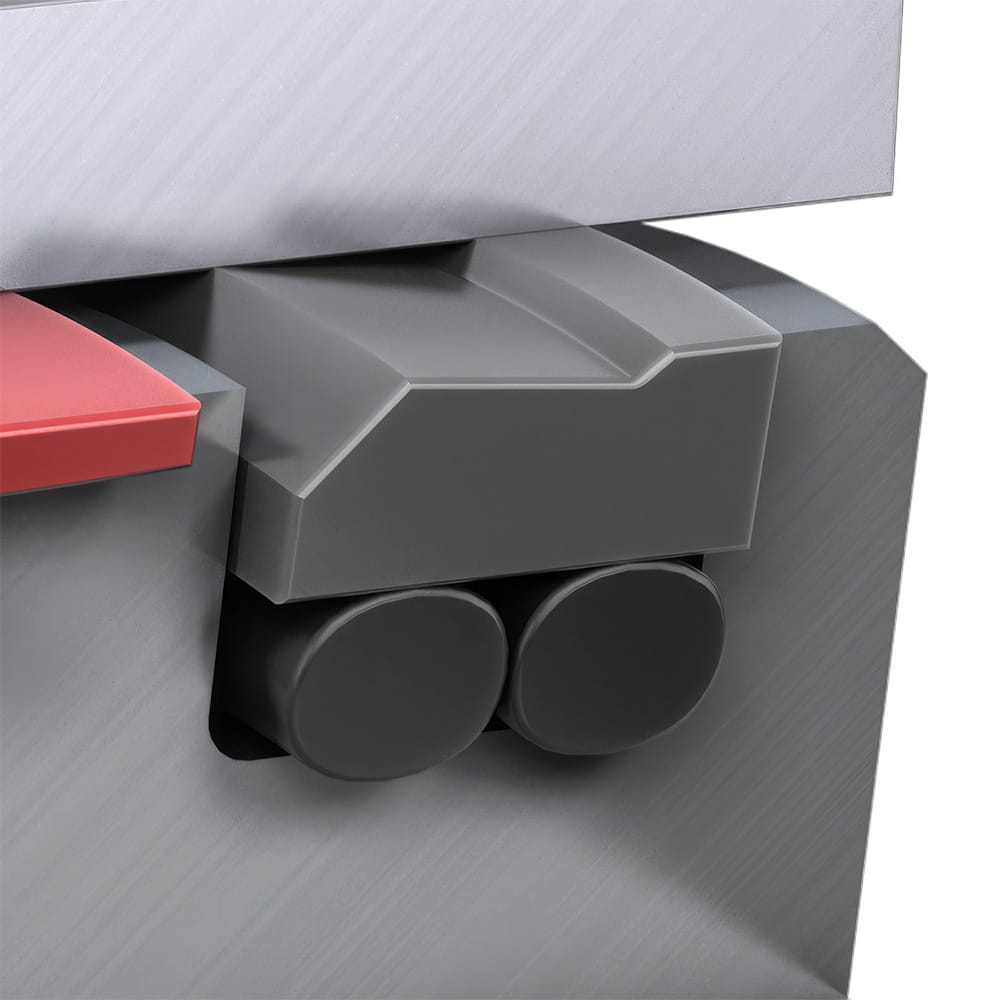

Merkel® PT3
The PT3 double-acting wiper is used in piston sealing systems. Its radially outward-facing wiping edge, along with an additional sealing edge, supports the sealing function when using single-acting piston seals. Two O-rings provide the required preload force for the PTFE profile ring.
-
Wiping edge protects the upstream piston seal from wear and contamination, thereby increasing system service life under demanding operating conditions
-
Additional sealing edge ensures maximum functional reliability
-
Stick-slip-free performance supports precise control and positioning of the hydraulic cylinder
Download Product Data Sheet
EL – Elastomer
Elastomers (EL) are highly flexible materials characterized by their rubber-like elasticity. They return to their original shape after deformation, making them ideal for use in sealing applications. Due to their chemical structure and cross-linking, elastomers offer good resistance to media, temperature, and mechanical stress. Typical representatives include NBR, EPDM, FKM, and VMQ, which are selected based on the specific application. To increase dimensional stability and pressure resistance, improve tear strength, and reduce deformation under load, elastomers are reinforced with fabric inserts made of cotton or synthetic fibers.
Wipers – Our Key Elastomer Designs

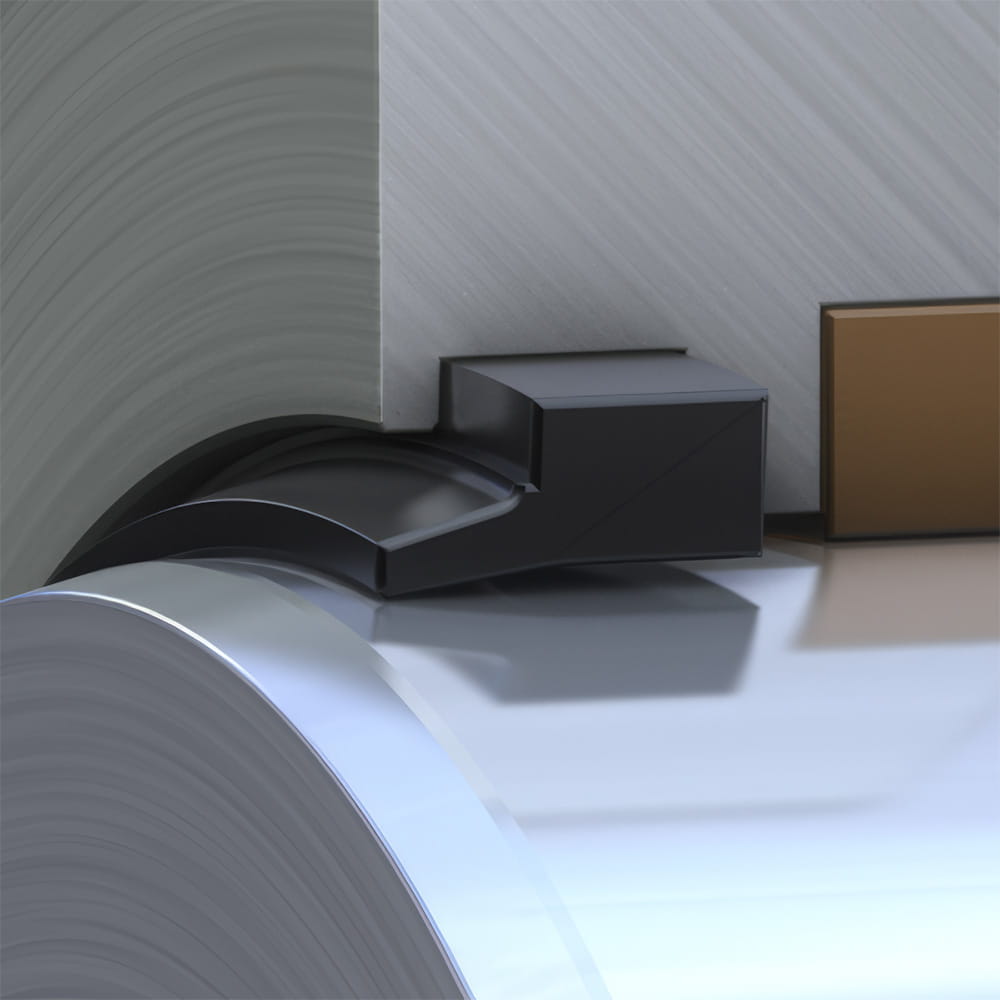

Merkel® P6
The P6 is a single-acting wiper. Its support segments prevent twisting within the housing.
-
Good fit and static sealing effect on the outer diameter
-
The elastomer lip provides effective wiping performance
-
Suitable for use over a wide temperature range
Download Product Data Sheet

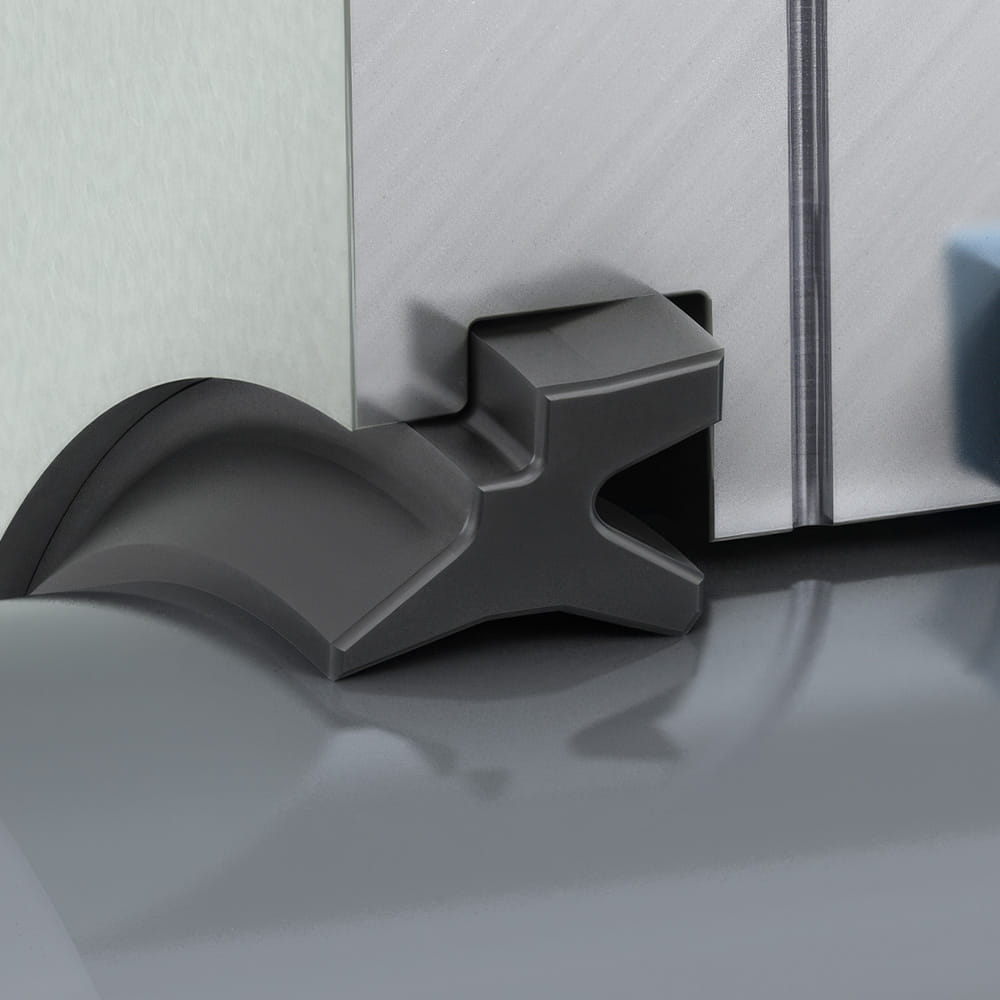

Merkel® P8
The P8 is a double-acting wiper. Its wiping lip faces outward, while the inner sealing lip performs the wiping function of a U-cup seal.
-
High wiping efficiency against dirt and contaminants
-
Excellent sealing performance against the residual oil film on the extending rod
-
High wear resistance, resulting in long service life
Download Product Data Sheet
Further versions and special designs in our Product Catalog
Selected designs can be compared there with their application parameters. This facilitates the final selection of a suitable wiper for the respective application.
