Illustrated collage with a solar plant, a crane, wind wheels and a fan.

Energy Storage of the Future - Three Innovative Methods

Sun, wind and water provide renewable energy, but not around the clock. That is why efficient storage methods are needed. Three amazing solutions that hold real innovation potential.

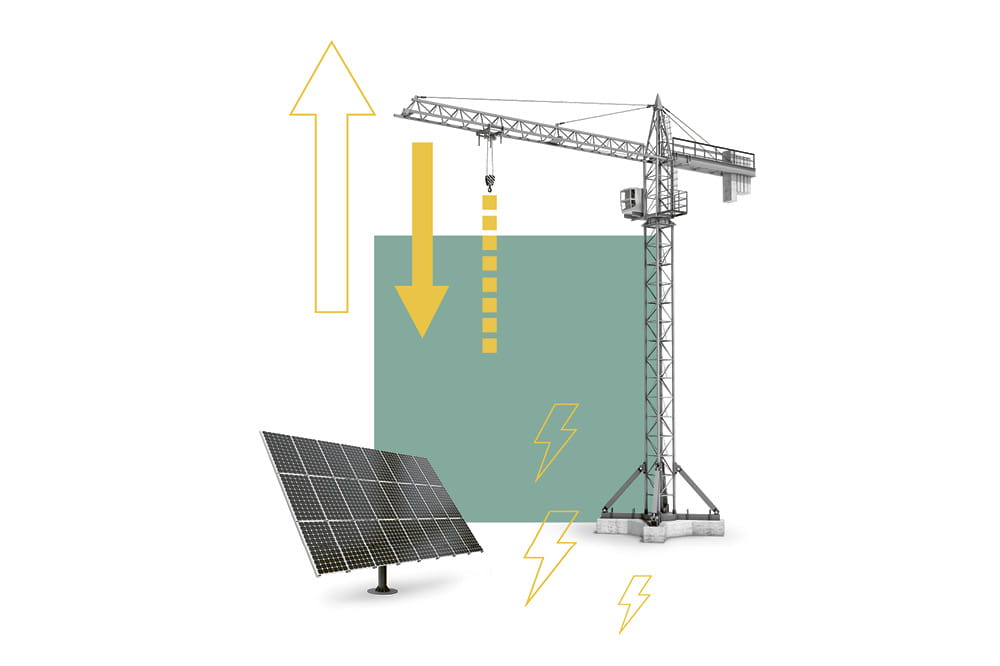

Weight lifting: Gravity accumulators move weights such as concrete or bricks.

Gravity Storage With Bricks From Waste

Simply …

Energy is generated when concrete blocks are moved from place to place. The Swiss clean technology company Energy Vault, which is listed on the U.S. tech stock exchange, has developed a formula for success out of this ostensibly simple concept. The process starts with a 120-meter (393-feet) crane that stacks concrete blocks. The latest generation of this energy storage system consists of a box-shaped structure. The mode of operation is always the same. When there is an energy surplus, an artificial intelligence system elevates the mater­ials for the structure, storing the available energy. It is released when the materials are lowered. The approach resembles the operation of a pump storage plant. The difference is that the blocks, not water, are the storage medium. They are made of earth, sand and debris gathered locally.

… Genius

If a solar or wind park is connected to this type of long-term storage system in the standard 500 megawatt hour size, the plant is capable of replacing a large coal-fired power plant. The cost of the system is expected to be $5 to $10 million – a cost that can compete with pump storage plants. The storage system needs no water, lithium or cobalt, and is not affected by the weather.

Transformation: During chemical energy storage, CO2 passes through different aggregate states.

CO₂ as Benefactor

Simply …

When it comes to the climate, CO2 emissions do not exactly enjoy the best reputation. An Italian startup has now managed to transform this disagreeable compound from villain to hero. And it is taking a simple approach: The CO2 is held in a dome-shaped repository. When energy is injected, the gas leaves the dome as it is compressed and liquefied, and then is stored outside it under pressure. At discharge, the liquefied CO2 takes the reverse path, returning to its original form. In the process, the compound expands, creating large quantities of compressed air to drive a turbine and generate electricity.

… Genius

The dome-shaped structure adapts flexibly to a particular volume, compensating extraordinarily well for pressure differences. The technology has long been used in biogas systems. The closed cycle handles exactly one charge of CO2 without expelling any of it into the air. Thanks to its large size, this sustainable energy storage technology is ideal for a connection to a wind or solar farm in rural areas. A system can store electricity for about eight hours.

Deep Down: Electricity storage on the seabed is suitable for connection to offshore wind turbines.

Pumps at the Bottom of the Sea

Simply …

Sometimes the solution is 700 meters (2,300 feet) down. Researchers have discovered that the principle of a pump storage plant also works on the ocean floor. After all, the ocean has everything needed for it: ample space and water and enough of a pressure gradient. If hollow concrete balls 30 meters (about 100 feet) in diameter are lowered to the ocean floor and a valve opens up, water under high pressure flows into the hollow space inside. The water drives a turbine that produces electricity using a generator. If there is surplus energy, the turbine functions as a pump and conveys the water out of the ball in the opposite direction.

… Genius

The seawater storage system ought to be able to feed about 5 megawatts of output into the grid. This comes close to the average performance of an offshore wind turbine and thus suggests huge potential for this method of storage worldwide. In fact, suitable locations such as the coastal waters off Norway, Spain, the United States and Japan could potentially store more than 800 terawatt hours. That is 80 times what the world will need per year through 2040, according to forecasts. However, this approach has not yet made it past the prototype stage.


This article originally appeared in ESSENTIAL, Freudenberg Sealing Technologies’ corporate magazine that covers trends, industries and new ideas. To read more stories like this, click here.
