Dynamic Seals
Dynamic seals are used in applications with motion between the hardware component and the sealing solution. The motion can be rotary, translatory, reciprocating or oscillating. Effective dynamic seals need to maintain a balance between the sealing force, minimize the friction and furthermore prevent leakage.
Hydraulic Piston Seals from PTFE Teflon
Piston Seals From Freudenberg Sealing Technologies Stay in Shape Even Under the Greatest Loads
Piston seals have the job of reliably sealing the piston against the cylinder tube while ensuring its efficient movement with minimal friction and without drift.
High Functionality Thanks to the Right Materials
Piston Seals from Freudenberg Sealing Technologies are used in a wide variety of state-of-the-art sealing systems. They are specially adapted to their particular tasks and conditions of use. Their high level of functionality is impressive.
State-of-the-art hydraulic Piston Seals can be precisely adjusted to a particular application with the selection of suitable materials. Polyurethane and PTFE materials mainly come into use. In combination with the Freudenberg Sealing Technology geometries – which have been proven a million times over – they always provide the optimal solution.

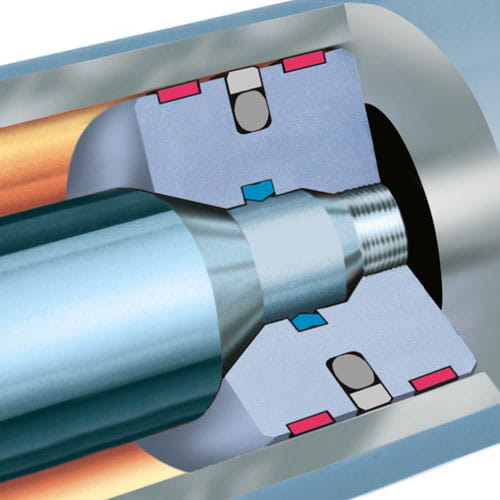

There are different ways to seal pistons in pneumatic cylinders (see illustration). In this case as well, the right products are available from the Freudenberg Sealing Technologies portfolio.
Hdp 330: The Piston Seal for the Harshest Operating Conditions
For applications with difficult operating conditions, the special polyamide (PA) HDP 330 piston seal from Freudenberg Sealing Technologies offers maximum functional reliability, while withstanding extreme pressures, as high as 800 bar. Thanks to the highly wear resistant sealing element material, cylinder tubes with rougher surfaces than would normally be recommended can be used for a simplified, cost-effective cylinder design.
Its extreme resistance to gap extrusion and its fast and easy installation are other advantages of this robust piston seal.
Another important feature of this two-component seal is its elastomer energizing element. It is generally produced from acrylic rubber (NBR), but a high temperature elastomer can also be used to achieve higher temperatures.
Our Products in Detail
-
Merkel® Chevron Seal EK/EKV
-
Merkel® Compact Seal L 27
-
Merkel® Compact Seal T 42
-
Merkel® Compact Seal T 44
-
Merkel® U-ring 0215
-
Merkel® U-ring 0217
-
Merkel® Nutring 0504
-
Merkel® Nutring TMP 21
-
Merkel® Omegat OMK-DR HB
-
Merkel® Omegat OMK-ES
-
Merkel® Omegat OMK-ES PR
-
Merkel® Omegat OMK-MR
-
Merkel® Omegat OMK-QR
-
Merkel® Omegat OMK-S
Merkel® Chevron Seal EK/EKV
Multi-element piston seal, consisting of thrust ring, a sleeve and a back-up ring. For robust areas of application, mainly for the supply of replacement parts for existing installations.
Merkel® Compact Seal L 27
Multi-element piston seal for pistons that are pressurizable on both sides. Major gap bridging. Activated back rings offer significant protection against extrusion.
Merkel® Compact Seal T 42
Multi-element piston seal for pistons that are pressurizable on both sides. Suited for use in mining (rams, advancing cylinders in progressive extension).
Merkel® Compact Seal T 44
Multi-element piston seal for pistons that are pressurizable on both sides. Suited for maximum pressure loads in mining (rams, advancing cylinders in progressive extension).
Merkel® U-ring 0215
Single-action, two-element piston seal for use in hydraulic and pneumatic applications. Fabric reinforcement on the running surface.
Merkel® U-ring 0217
Single-action, two-element piston seal for use in hydraulic and pneumatic applications. Shortened fabric reinforcement on the running surface.
Merkel® Nutring 0504
Two-element piston seal with asymmetrical polyurethane profile ring and back ring. Among other purposes, usable as an individual seal in a pressure range up to 50 MPa and for the bridging of large seal gaps.
Merkel® Nutring TMP 21
Single-action piston seal made of abrasion-resistant polyurethane. For heavy pneumatic demands and high operating requirements.
Merkel® Omegat OMK-DR HB
Merkel® Omegat OMK-DR HB Three-element piston seal for combined lifting and turning movements. Protection against joint rotation in the event of turning movements, due to profile contact surface on the O-ring.
Merkel® Omegat OMK-ES
Two-element piston seal for pistons that are pressurizable on one side. Especially suited to large diameters and suited to heavy-duty hydraulic applications.
Merkel® Omegat OMK-ES PR
Two-element piston seal, consisting of one PTFE profile ring with pressure release function and skids as well as an elastomer profile ring as a pre-stress element. For heavy-duty, demanding applications.
Merkel® Omegat OMK-MR
Two-element piston seal, consisting of a PTFE profile ring and an O-ring as a pre-stress element. For pistons that are pressurizable on two sides.
Merkel® Omegat OMK-QR
Two-element piston seal, consisting of a PTFE profile ring and an elastomer profile ring as a pre-stress element. For pistons that are pressurizable on two sides, demanding applications and large diameters.
Merkel® Omegat OMK-S
Two-element piston seal, consisting of a PTFE profile ring and an elastomer profile ring as a pre-stress element. For heavy-duty hydraulic applications.
3D Animations
Discover our innovative sealing solutions for use in Hydraulic Applications
in the new 3D animations!
Related Documents
-
OMK-PU AU 30500 - Alternative to PTFE Piston Seals
A two piece piston seal produced in Freudenberg’s new hydrolysis resistant, high performance polyurethane combined with an Oring energizer as a potential alternative to piston seals with a PTFE sealing element.
-
HDP 330 High-Pressure Piston Seals
The special polyamide HDP 330 seal complements the Merkel® piston seal program for the installation space DIN ISO 7425-1. This seal withstands the most extreme pressures (up to 800 bar) and allows for use of rougher cylinder liner surfaces, which can cut cylinder production costs.
-
TR200 T-Ring
The Freudenberg Sealing Technologies TR200 T-Ring is an innovative actuating low-friction piston seal used in directional control valves for pneumatic cylinder applications.
-
D-JACK Seals
D-JACK seals were developed for all piston applications. D-Ring meets PTFE: a match made in your engine. The D-Jack is a friction optimized seal for all dry lubricated piston applications.
-
Bonded piston seals
Bonded piston seals (BPS) from Freudenberg Sealing Technologies prove to be an exceptional value for the life of your transmission. By combining special elastomers, metal treatment, adhesive solutions, and manufacturing processes, these seals demonstrate superior performance throughout the life of the transmission. The BPS Lead Center is dedicated solely to the bonded piston seal product line, concentrating on in-depth solutions to a critical transmission component.
-
Merkel® Omegat OMK-ES
Merkel® Omegat OMK-ES is a two-piece seal set for sealing single-acting pistons, consisting of a PTFE profile ring and an elastomer profile ring as a pre-stress element.
-
Merkel® Omegat OMK-MR
Merkel® Omegat OMK-MR is a two-piece seal set for sealing pistons, consisting of a PTFE Profile ring and an O-ring as the pre-stressing element.
-
Merkel® Omegat OMK-S
Merkel® Omegat OMK-S is a two-piece seal set for sealing pistons, consisting of a PTFE profile ring and an elastomer Profile ring as a pre-stress element.
-
Merkel® V-Packing Set EK/EKV
Merkel® V-Packing Set EK/EKV is a multi-part piston seal set comprising one pressure ring, one or two V-shaped rings and one support ring.
-
The Perfect Cylinder Program for Hydraulic Seals
The Freudenberg-NOK PERFECT CYLINDER program for hydraulic seals optimizes sealing technology to help customers reduce their costs and improve the performance of their machinery.
