Freudenberg Helps Manufacturers Optimizing Hydraulic Cylinder Sealing Systems

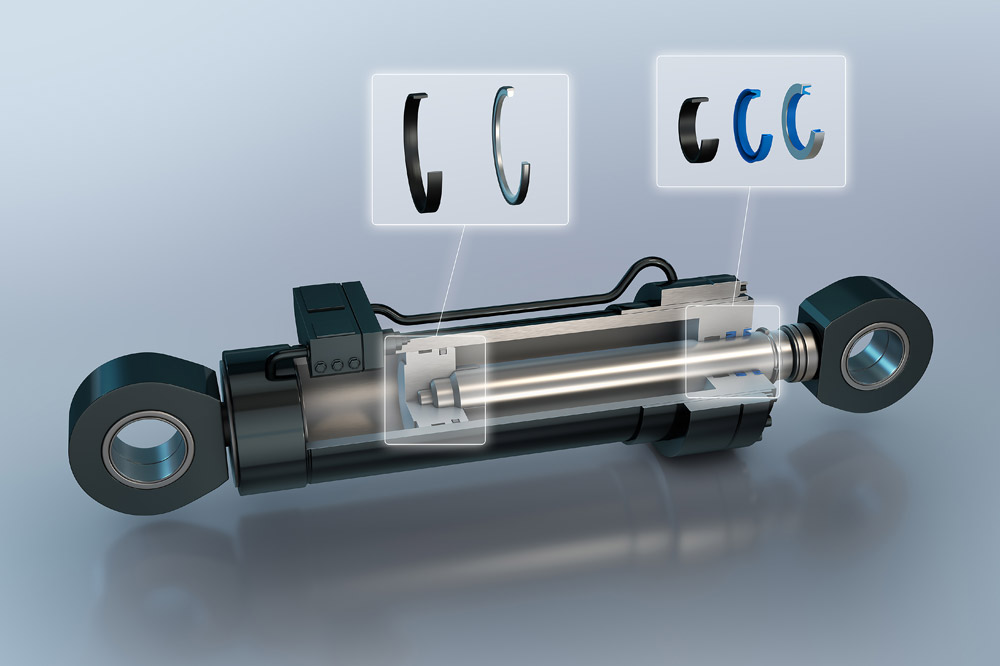

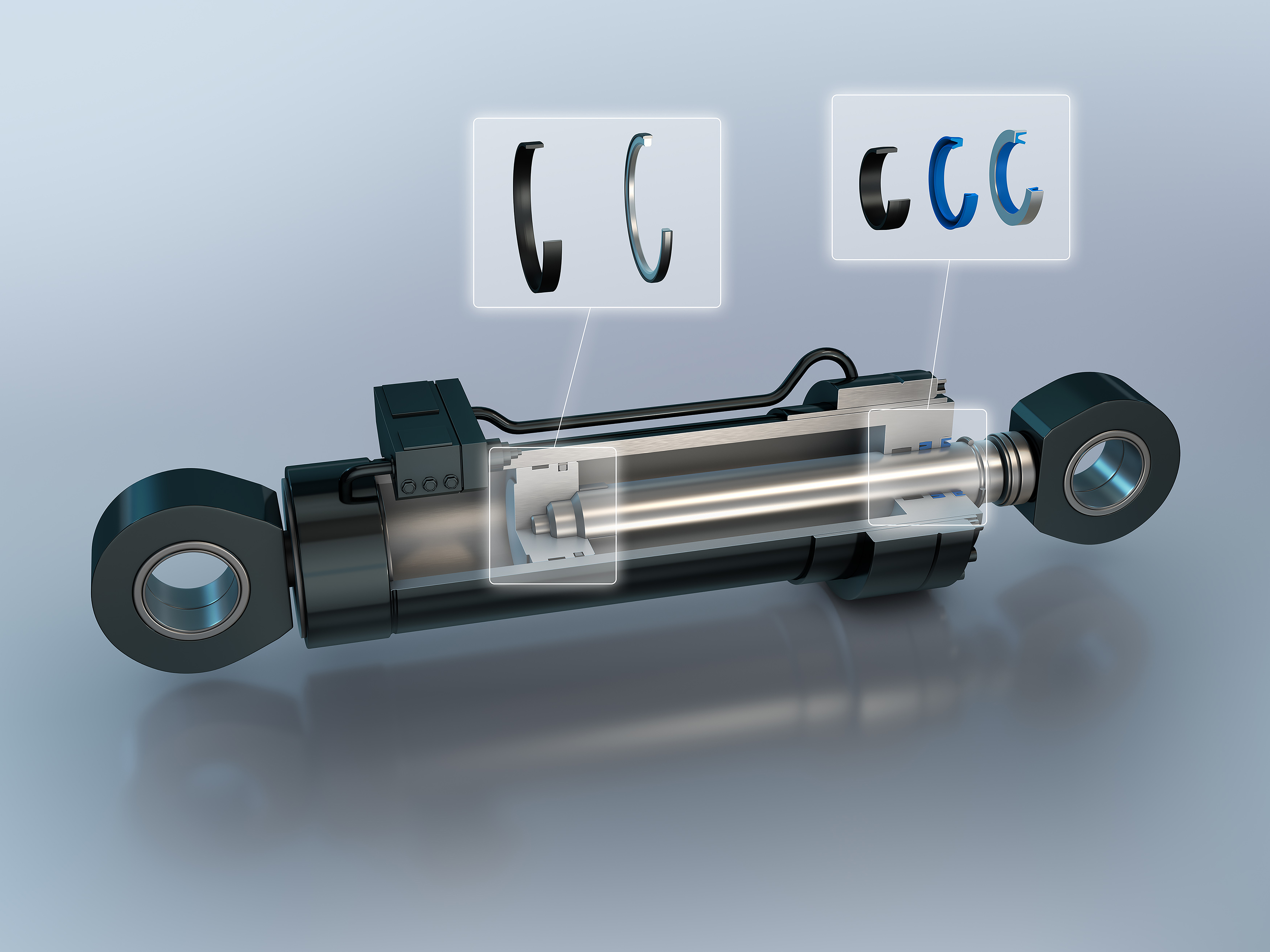

One of the company’s latest sealing innovations in this area, for example, is the newly launched imperial-sized Guivex® series guide bands, which are profiled piston and rod guide bands made with a new carbon-fiber filled polyamide material. The Guivex bands can be used in Perfect Cylinder-optimized sealing systems and in long-stroke cylinder, short stroke, short guiding distance, and high-side-load applications.

The size of the Guivex bands allows manufacturers to use them in radial load capacities that are 40 percent higher than standard guide bands, and they can be utilized in all fluids normally found in hydraulic systems, replacing standard 1/8” cross section piston guide bands in current housings.

The reduction of cylinder gland widths and lengths, reducing costs and increasing design flexibility

“The new Guivex bands can enable the reduction of cylinder gland widths and lengths, reducing costs and increasing design flexibility,” said Jay White, Product Marketing Manager, Fluid Power, Freudenberg-NOK. “They are less abrasive to sliding surfaces as well, resulting in no jamming and quieter operation.”

Other sealing technologies that can used in the Perfect Cylinder program include the HDP 330 high-pressure piston seal, plus seals made from the new 94 AU 30000 polyurethane material.

The HDP 330 is a special polyamide seal that can withstand extreme pressure (up to 800 bar) and allows for use of rougher cylinder liner surfaces, which can also cut cylinder production costs.

Seals made from the 94 AU 30000 material last longer than current, standard seal solutions and have high resistance to hydrolysis, even in temperatures ranging from -35°C to 120°C and can remain stable in operating pressures up to 50 MPa / 7250 psi.

More information is available here.
